Earthing Electrode

In Mehsana, Kadi, Kalol, Deesa, Palanpur and Radhanpur North Gujarat, India, Earthing electrodes are critical components of electrical grounding systems designed to protect equipment, buildings, and individuals from the dangers of electrical faults and lightning strikes. They provide a low-resistance path for fault currents to safely dissipate into the ground

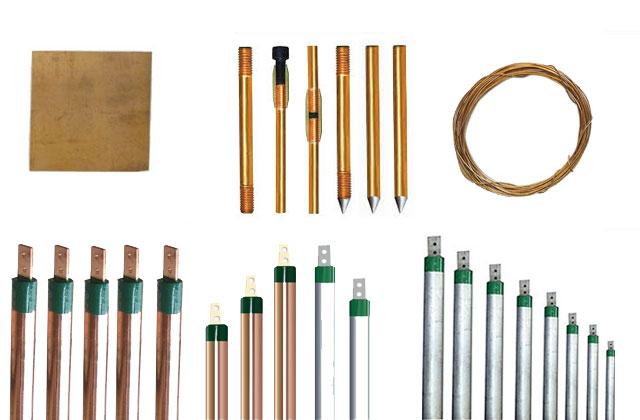

Type of Earthing Electrodes
Copper Bonded Earthing Electrodes : These electrodes consist of a steel core with a layer of copper bonded to it. The steel core provides structural strength, while the copper layer ensures high conductivity and resistance to corrosion. Copper bonded electrodes are widely used due to their reliability and cost-effectiveness.
Pure Copper Earthing Electrodes : Pure copper electrodes offer excellent conductivity and corrosion resistance. They are suitable for applications where a higher level of conductivity is required or in areas with corrosive soil conditions.
Galvanized Iron (GI) Earthing Electrodes : GI electrodes are made of galvanized iron, providing good durability and resistance to corrosion. While they may not offer the same conductivity as copper electrodes, they are often chosen for general-purpose applications due to their lower cost.
Chemical Earthing Electrodes : Chemical earthing electrodes contain a mixture of conductive compounds and additives that enhance the conductivity of the surrounding soil. These electrodes are designed to provide low-resistance earthing even in areas with poor soil conditions.
Pipe Earthing Electrodes : Pipe electrodes are metal pipes, typically copper or GI, driven vertically into the ground. They are commonly used in rocky or hard soil conditions where traditional electrodes may be challenging to install.
Plate Earthing Electrodes : Plate electrodes consist of large metal plates buried horizontally in the ground to provide a larger surface area for earthing. They are suitable for areas with high soil resistivity or where space constraints limit the use of traditional electrodes.

In Mehsana, Kadi, Kalol, Deesa, Palanpur and Radhanpur North Gujarat, India, Maintenance free earthing electrodes are designed to minimize the need for regular upkeep and inspection while providing reliable grounding for electrical systems. These electrodes are often used in areas where traditional earthing systems may be difficult to maintain or access regularly.
Type of Maintenance free earthing electrodes
Gel Earthing Electrodes : Gel earthing electrodes utilize a conductive gel compound surrounding the electrode, which enhances the contact between the electrode and the surrounding soil. This gel helps maintain low resistance over time and reduces the need for periodic maintenance.
Chemical Earthing Electrodes : Chemical earthing electrodes incorporate a mixture of conductive compounds and additives that improve soil conductivity around the electrode. This chemical mixture forms a stable compound with the soil, providing long-lasting and maintenance-free grounding.
Maintenance Free Earthing Plates : These plates are typically made of high-grade copper or copper alloy and are buried horizontally in the ground. They offer a larger surface area for grounding, reducing soil resistance and providing stable earthing without requiring regular maintenance.
Maintenance Free Pipe Electrodes : Similar to traditional pipe electrodes, maintenance-free pipe electrodes are driven vertically into the ground. However, they are coated with conductive compounds or materials that prevent corrosion and ensure long-term performance without maintenance.
Solid Rod Maintenance Free Earthing Electrodes : These electrodes consist of solid metal rods, such as copper or copper-bonded steel, with enhanced surface treatments or coatings to resist corrosion and maintain low resistance over time.
Polymer Bonded Maintenance Free Electrodes : Polymer-bonded electrodes combine the durability of polymers with the conductivity of metals. They are resistant to corrosion, chemicals, and mechanical damage, making them suitable for harsh environments and providing maintenance-free earthing solutions.



Components of Earthing Electrode

Electrode Material :
Typically made of copper, galvanized iron (GI), steel, or copper-bonded rods.
Types of Electrodes :
Rod electrodes (copper-bonded rods)
Pipe electrodes (GI or copper pipe)
Plate electrodes (copper or GI plate)
Strip or wire electrodes
Backfill Material :
Often includes bentonite, charcoal, and salt to enhance conductivity and reduce resistance.
Functions :
Protection against electric shock by ensuring fault current safely flows into the ground.
Stabilization of voltage levels during lightning or switching surges.
Ensures proper operation of protective devices like circuit breakers.

Applications

• Residential electrical systems
  Industrial power systems
  Telecommunications
  Substations and transformers
  Lightning protection systems
