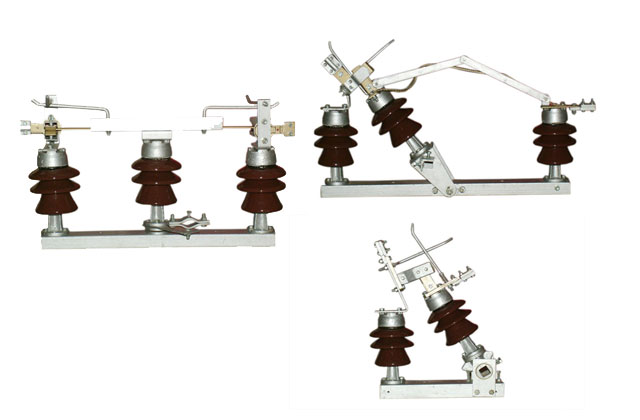

Air Break Switch (A B Switch)

air break switches are manufactured by atlas engineering company, These switches come in different sizes and configurations to suit various voltage levels and applications, ranging from low-voltage distribution systems to high-voltage transmission lines
Air break switches in Mehsana, Kadi, Kalol, Deesa, Palanpur and Radhanpur North Gujarat, India, commonly known as air circuit breakers (ACBs) or air break disconnectors, are essential components in electrical systems for interrupting or isolating circuits during maintenance or in case of faults. In Gujarat, India, air break switches are widely used in electrical distribution networks, industrial applications, and railway systems.
A B Switch In Mehsana, Kadi, Kalol, Deesa, Palanpur and Radhanpur North Gujarat, India, play a crucial role in ensuring the safety and reliability of electrical infrastructure by providing a means to isolate faulty equipment or sections of the network. They are designed to open and close electrical circuits safely under normal operating conditions and during abnormal events such as overloads or short circuits.



Air Break Switch

Features : Air Break Switch
Operation Medium: Air (as the arc extinguishing medium)
Voltage Range: Typically used for 11 kV to 245 kV systems
Location: Mounted outdoors on substations or transmission towers
Manual or Motorized: Can be operated manually (via a lever) or by motorized mechanisms
Function : of Air Break Switch
The primary function of an air break switch is to make or break electrical circuits under normal conditions or during maintenance and emergency situations. It provides a visible gap between contacts when open, ensuring the circuit is safely interrupted.

Construction

air break switch typically consists of stationary and moving contacts housed in an insulated chamber filled with air or a gas such as sulfur hexafluoride (SF6). When the switch is open, the contacts are separated, creating an air gap to interrupt the circuit.
Operation :
Air break switches are manually operated or remotely controlled. When operated, the moving contacts either make or break electrical contact with the stationary contacts, allowing for the flow or interruption of current.

Applications

• Air break switches find applications in various sectors, including electrical distribution networks, industrial plants, substations, and railway systems. They are often used for isolating sections of a circuit for maintenance, disconnecting equipment for repair, or providing a visible means of isolation for safety purposes.

Types

• There are different types of air break switches, including single-phase and three-phase configurations, as well as indoor and outdoor variants. They can be designed for different voltage levels, ranging from low-voltage to high-voltage systems.

Advantages

• Simple and cost-effective.
  Easy to operate and maintain.
  Suitable for outdoor use.
